LG-55EM

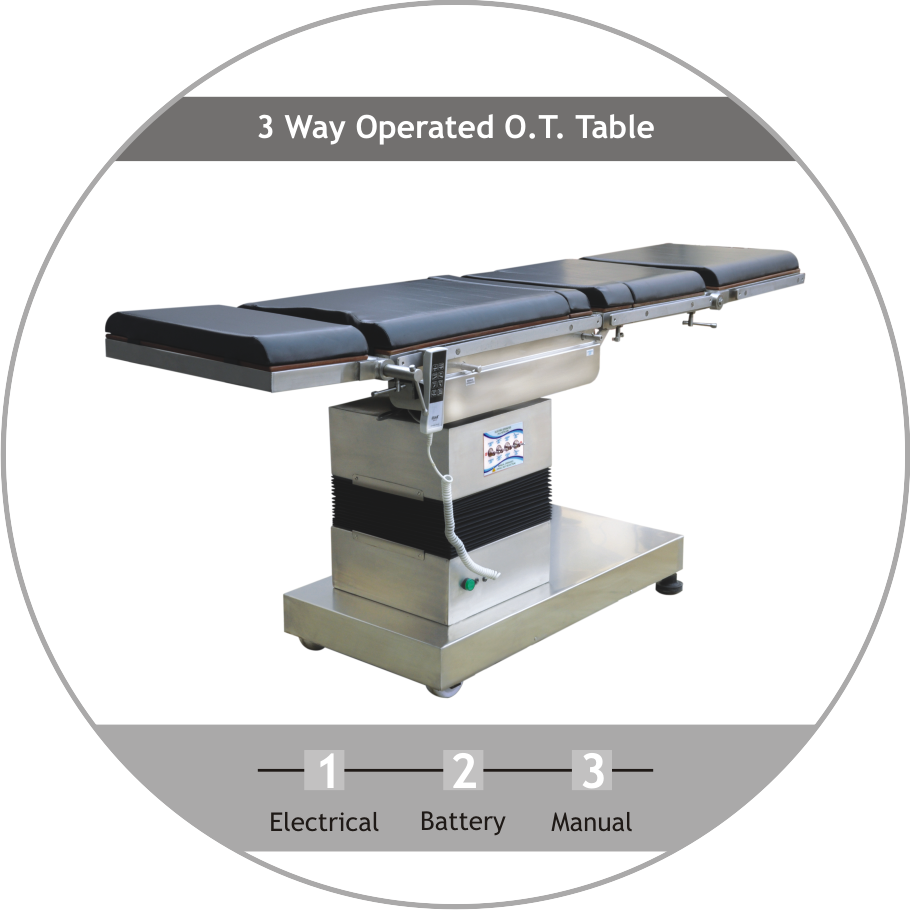

LG-55EM Operating table is designed for all kind of surgical operations and treatments. Its Intelligent electronics significantly facilitate electrical and manual override. Switching on the selector switches on the panel, we can manually operate the various positions with the help of crank.

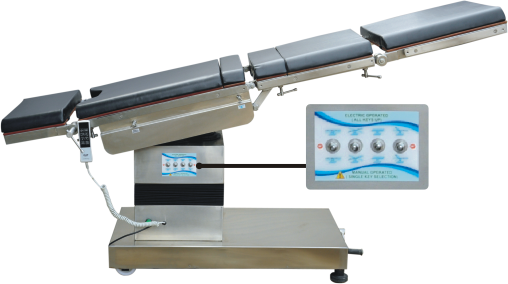

Unique Mechanism
Radiolucent Table Top
Handheld Remote
Removable Leg section

Various Positions

Trendelenburg
Flex
Reflex
Lateral Tilt

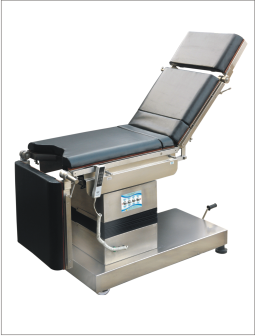

Chair Position

Technical Parameters

  • Length of Table Top2150 mm
  • Width of Table Top500 mm
  • Minimum Height750 mm
  • Maximum Height1050 mm
  • Kidney Elevator120 mm
  • Lateral Tilt+20°/-20°
  • Trendelenburg+25°/-25°
  • Back Section90°/-40°
  • Head & Leg Section90°/-90°
  • Permissible Load200 Kg

Accessories

Accessories
Knee Crutches
Accessories
Shoulder Support
Orthopedic Attachments
Anaesthetic Frame
Accessories
Intravenous Armboard
ccessories
Padded Side Support
ccessories
Mattress Set
